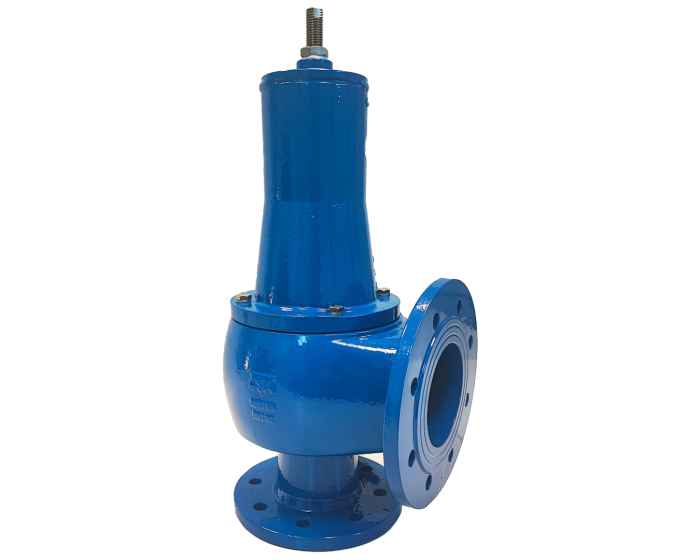

The fast acting relief valve3185 with flanged outlet PN10/16 or PN25, with NBR gasket, provides rapid pressure relief in high-pressure systems. Its spring-loaded mechanism ensures quick response and reliable protection against overpressure.
| Specification | Value |
|---|---|
| Construction standard | EN 1074-5 |
| Pressure range | 0 / 8 Bar |
| Application | Protection of the drinking water network |
| DN | DN65 - 2''1/2 |
| Fluid | Cold water |
| Body material | Ductile iron |
| PS (bar) | 8 |
| Connections | Flanged PN10/16 |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Warranty period | 2 years |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron DN65 - 2''1/2 Flanged PN10/16 0 / 8 Bar | 3185065 | S1010580 |
€1,218.41
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Flanged PN10/16 50/65 8 / 16 Bar | 3185066 | S1010581 |
€1,221.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Flanged PN25 50/65 8 / 16 Bar | 3185067 | S1010582 |
€1,331.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Flanged PN25 50/65 16 / 25 Bar | 3185068 | S1010583 |
€1,353.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN80 - 3'' Flanged PN10/16 0 / 8 Bar | 3185080 | S1010584 |
€1,684.86
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN80 - 3'' Flanged PN10/16 8 / 16 Bar | 3185081 | S1010585 |
€1,702.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN80 - 3'' Flanged PN25 8 / 16 Bar | 3185082 | S1010586 |
€1,855.10
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN80 - 3'' Flanged PN25 16 / 25 Bar | 3185083 | S1010587 |
€1,894.13
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN100 - 4'' Flanged PN10/16 0 / 8 Bar | 3185100 | S1010588 |
€1,862.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN100 - 4'' Flanged PN10/16 8 / 16 Bar | 3185101 | S1010589 |
€1,879.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN100 - 4'' Flanged PN25 8 / 16 Bar | 3185102 | S1010590 |
€2,048.43
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN100 - 4'' Flanged PN25 16 / 25 Bar | 3185103 | S1010591 |
€2,087.44
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN10/16 0 / 8 Bar | 3185150 | S1010592 |
€5,285.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN10/16 8 / 16 Bar | 3185151 | S1010593 |
€5,302.84
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN25 8 / 16 Bar | 3185152 | S1010594 |
€5,779.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN25 16 / 25 Bar | 3185153 | S1010595 |
€5,799.41
(excl. btw)
|
add to cart |
